Zero Backlash Servo Encoder Couplings: The Key to Precision Motion Control.
In modern automation and control systems, achieving absolute precision, accuracy, and reliability hinges on the quality of your couplings. Our Servo Encoder Couplings are engineered specifically to connect and synchronize rotating shafts in systems where even the slightest positioning error is unacceptable.
These critical components transmit torque and motion while effectively compensating for shaft misalignment (angular, parallel, or skew) without introducing backlash—the essential feature for high-performance encoders and servo systems.
Our Servo Encoder Couplings are built with zero-backlash technology for high-precision applications. As an advanced manufacturer & supplier of servo encoder couplings, we support industries where accuracy is critical by delivering couplings with low inertia and high torsional stiffness.
Our precision couplings are designed to meet the rigorous demands of sensitive motion control applications:
- Zero Backlash: This is the most crucial feature, ensuring that every degree of rotational motion is transmitted accurately without lost movement, vital for encoders and resolvers.
- Precision Alignment: Guarantees accurate transmission of rotational motion and minimizes stress, vibration, and wear on expensive connected components like bearings and seals.
- Torsional Flexibility: Accommodates common angular and parallel misalignments, reducing stress on the entire system and extending the lifespan of the coupling and motor.
- Vibration Damping: Certain specialized types (like Bellows and Double-Loop) incorporate built-in damping features, contributing to smoother, quieter operation and increased system reliability.
- High Torque Transmission: Despite their small size, these couplings are designed to provide the precise shaft connection needed to handle the high rotational forces from servo motors.

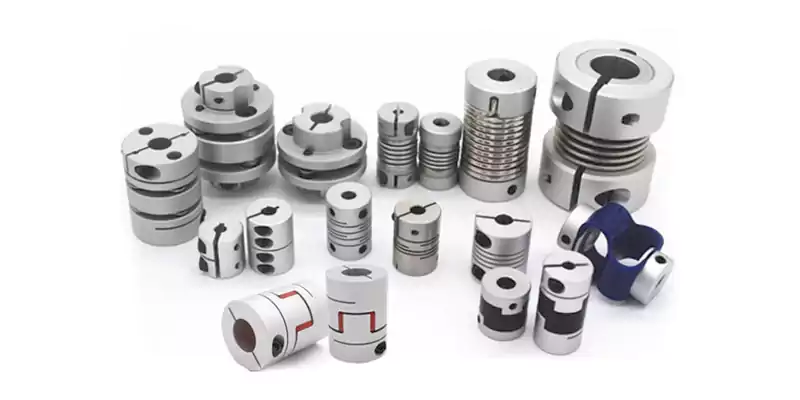

We provide a range of coupling technologies, each optimized for specific misalignment profiles and stiffness requirements:
| Coupling Type | Best For | Key Characteristic |
| Flexible Disc Couplings | High torsional stiffness, low inertia. | Utilizes flexible metal discs to handle angular and parallel misalignment. |
| Bellows Couplings | Ultra-high precision, extremely low inertia. | Uses a thin metal bellows for maximum flexibility and accuracy. |
| Beam Couplings | Lower torque, accommodating three types of misalignment. | Machined from a single block, featuring helical cuts for flexibility. |
| Double-Loop Type | High radial compensation, cost-effective. | Uses a flexible loop element for smooth motion transfer. |
| Oldham Couplings | High parallel misalignment, good electrical insulation. | Three-piece design with a central element that allows for sliding. |
These high-precision couplings are essential wherever accurate positioning and speed control are required:
- CNC Machinery: Ensuring tool heads and actuators move with micron-level accuracy.
- Industrial Automation & Robotics: Providing feedback control and motion synchronization in assembly and processing machinery.
- Medical Devices: Used in imaging equipment and robotic surgery tools requiring flawless movement.
- Material Handling: Precision control in automated conveyors and sorting equipment.
- Aerospace Industry: Critical for test stands and control systems where reliability is paramount.
We provide engineered coupling solutions with tight concentricity, balanced rotors, and material options to suit dynamic applications.
